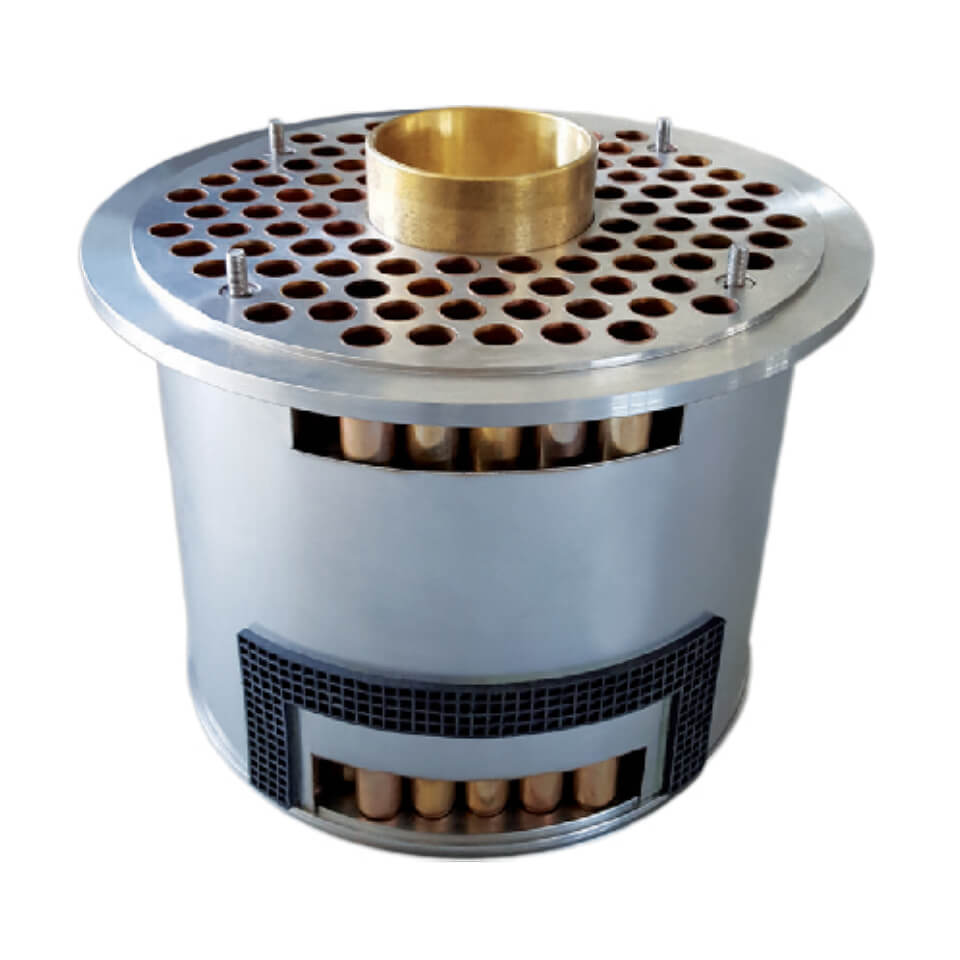

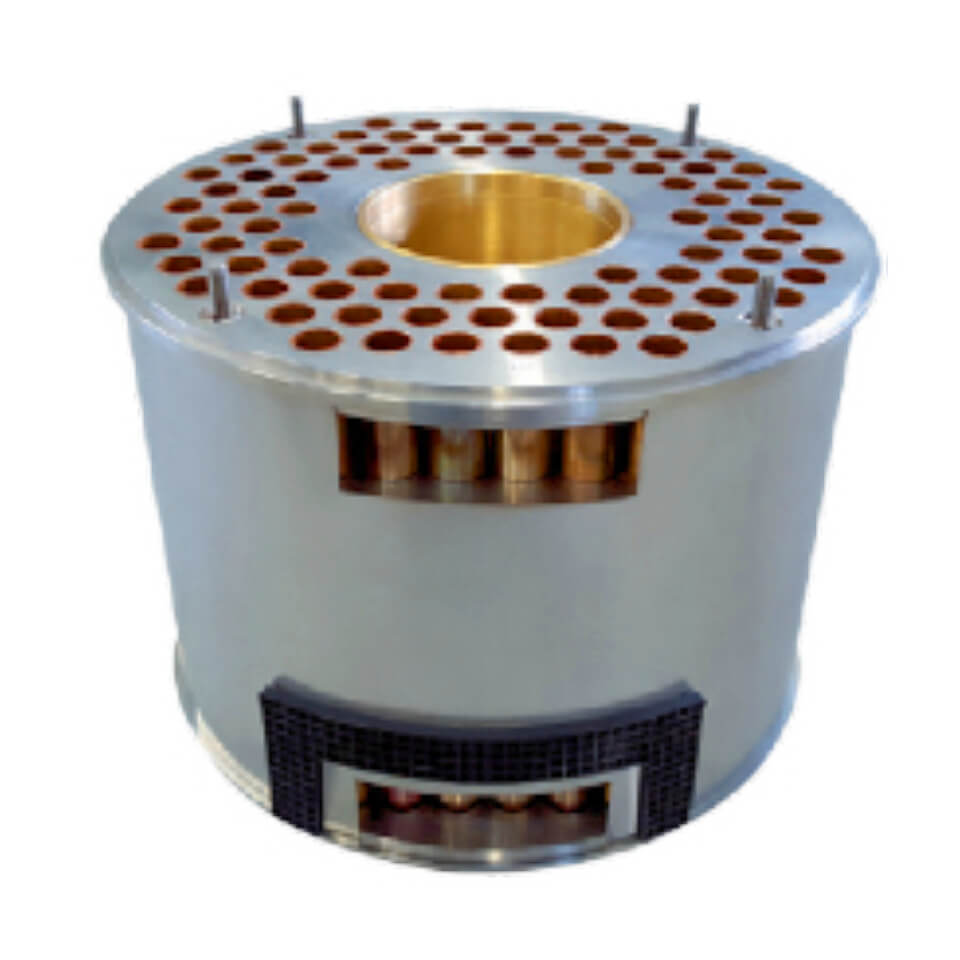

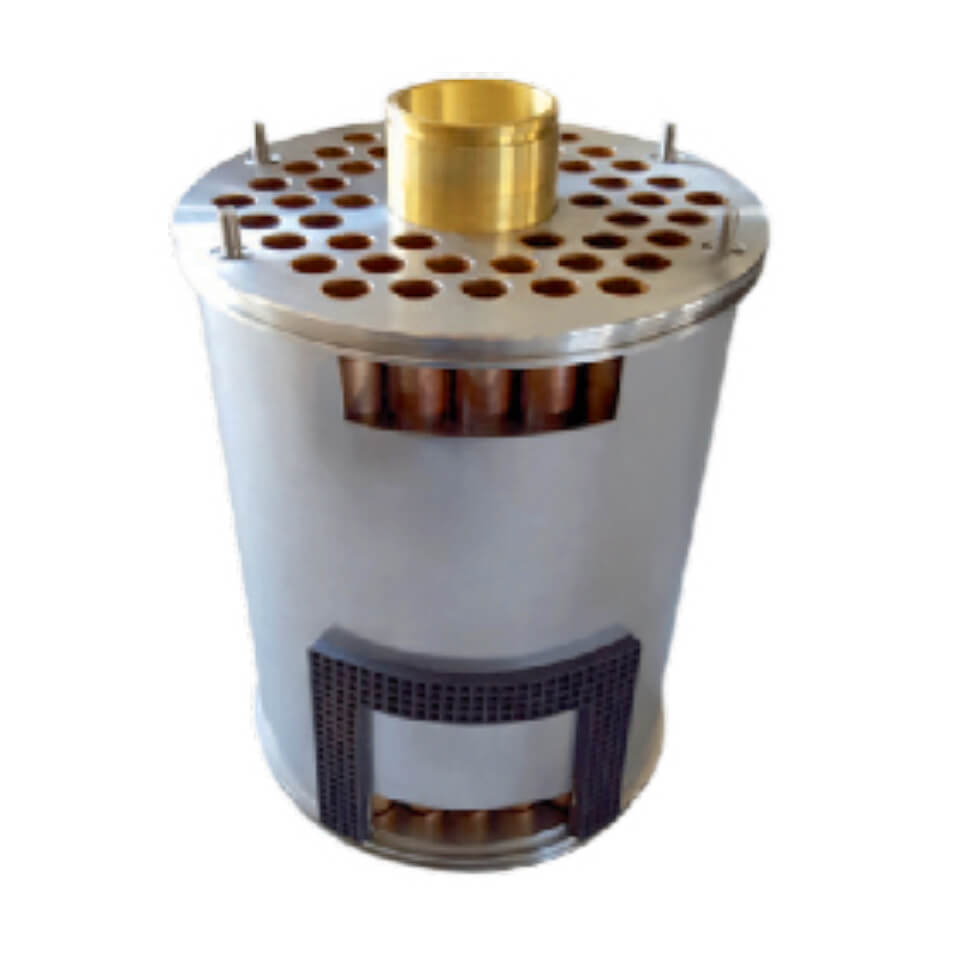

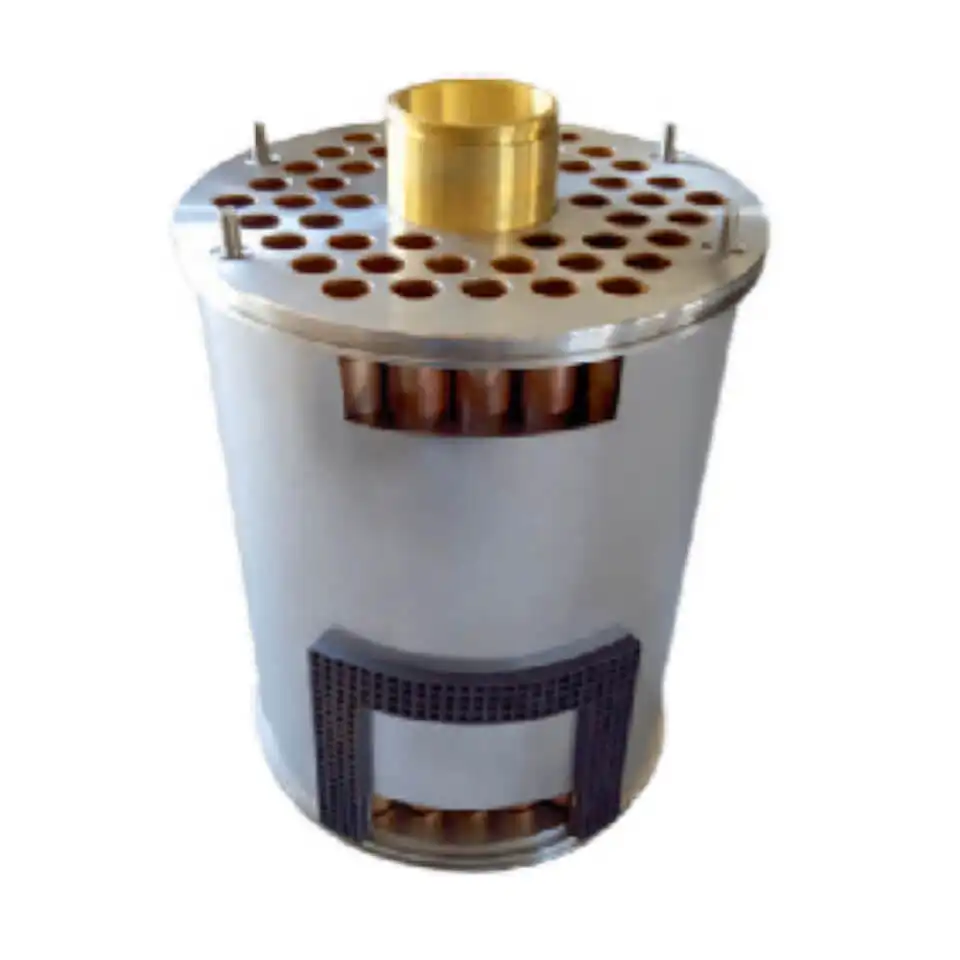

Ingersoll Rand Centac Air Coolers
Compressor Brand：Ingersoll Rand (IR)
Compressor Type：Centrifugal Compressor, Screw Compressor
1ST stage,2ST stage,3ST stage
AIR COOLING – EFFICIENT & ECONOMIC
The efficiency of air coolers in Centac® compressors significantly impacts their overall performance and operating costs. Users must utilize high-quality, technologically advanced air coolers to ensure the economical long-term operation of these compressors. Fete Vessel has addressed this need by developing and producing top-tier air coolers. Following the OEM design, our advanced manufacturing technology and the balanced use of tubes to cool the compressed air allows our air coolers to achieve an optimal balance between pressure loss and cooling temperature differential (CTD) values. As a result, we can confidently assure our customers that our air coolers are fully compatible with Centac® compressors and perform as well as, or even better than, OEM products. With ISO 9001:2015 certification, we are proud to manufacture our products in China. We provide a standard two-year warranty on all our Centac® air coolers, reflecting our commitment to the highest quality standards. Additionally, we are continuously working to reduce delivery times and maintain a stock of over 100 air coolers for various Centac® models, ready for immediate delivery to our customers.
DELIVERY RANGE
We can provide additional seals and waffle gaskets for our entire delivery range as needed.
Centac ® 1 Specification
| Centac ®1 | Header | Tubes | |||
| Standard | Option | Standard | Option | Option | |
| Frame 0 | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| Frame 1 | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| Frame 2 | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| Frame 3 | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| Frame 4 - 110 | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| Frame 4 - 150 | Stainless steel | Brass | Copper | Copper-nickel | Coated |
Centac ® 2 Specification
| Centac® 2 | Header | Tubes | |||
| Standard | Option | Standard | Option | Option | |
| CV1 | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| CV1A | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| CV2 | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| 2ACII | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| 2CII | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| 3CII | Stainless steel | Brass | Copper | Copper-nickel | Coated |
| 5CII | Stainless steel | Brass | Copper | Copper-nickel | Coated |
Centac ® 3 Specification
| Centac® C | Header | Tubes | |||
| Standard | Option | Standard | Option | Option | |
| C250 | Stainless steel | - | Copper | Copper-nickel | Coated |
| C350 | Stainless steel | - | Copper | Copper-nickel | Coated |
| C700 | Stainless steel | - | Copper | Copper-nickel | Coated |
| C800 | Stainless steel | - | Copper | - | - |
| C950 | Stainless steel | - | Copper | Copper-nickel | Coated |
| C1000 | Stainless steel | - | Copper | - | - |
| C3000 | Stainless steel | - | Copper | Copper-nickel | Coated |
| Brand Name: | Fete Vessel | Design Standard: | ASME, PED, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Production standard: | GB150.ASME.European standard. |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
